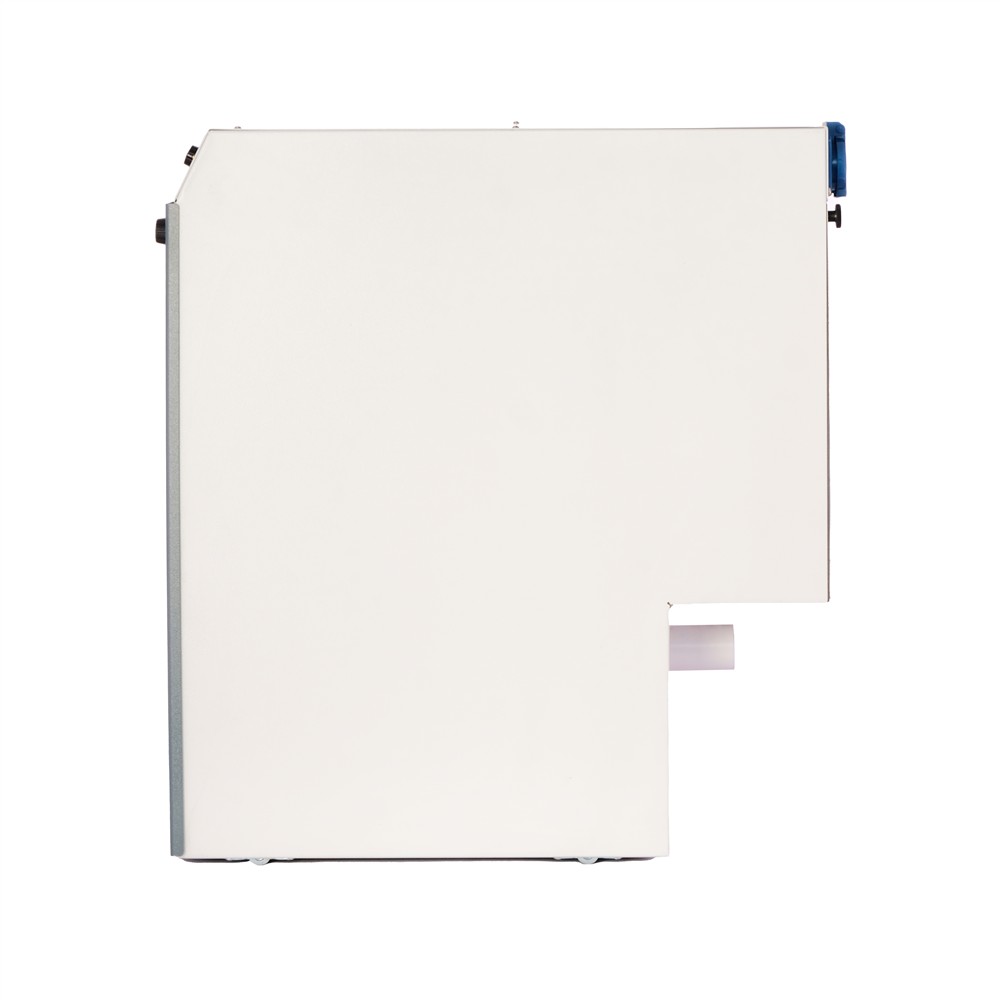

S group Suction
Description of this product
Cad Cams, as a sensitive and valuable device in dental laboratories, require care and maintenance, as well as need a strong and permanent suction to improve their quality and efficiency.

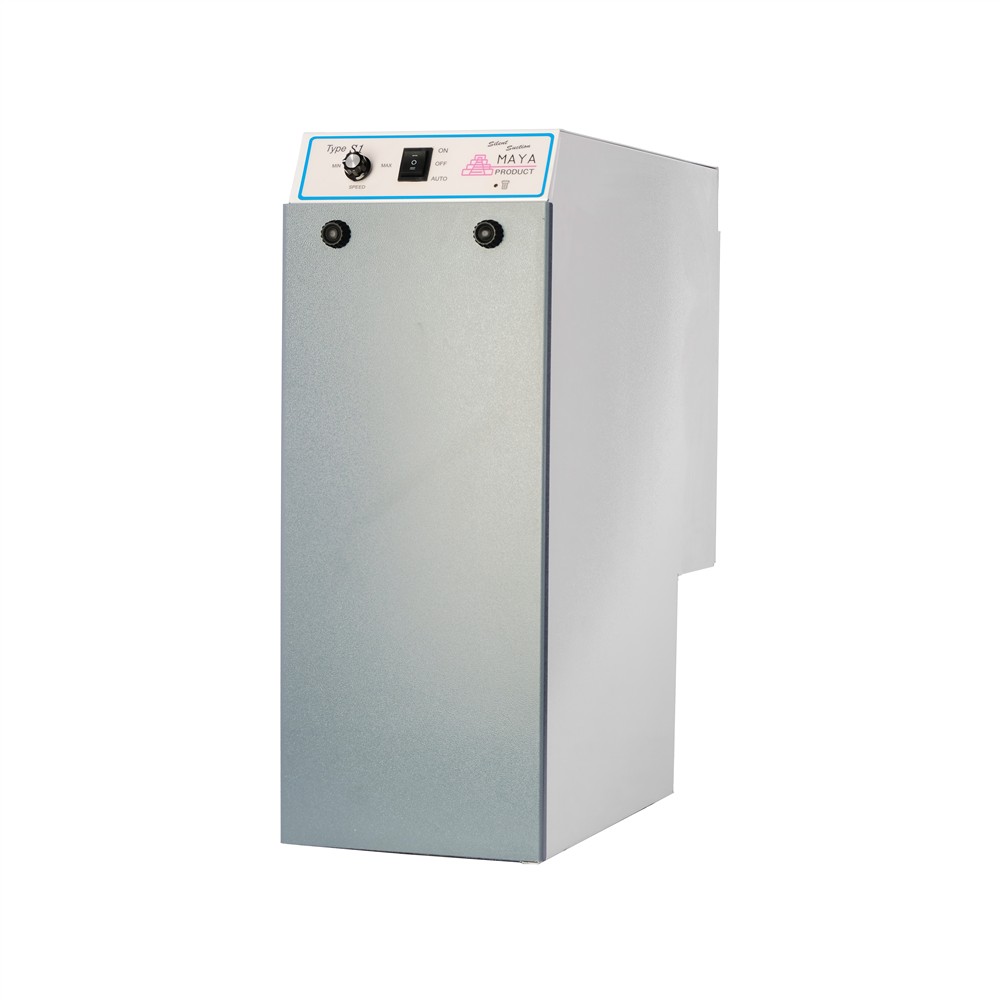

Maya Product has provided a suitable and unique silent vacuum compared to the high suction of the device by producing suction model s1 with permanent work capability, which is suitable for Cad Cams.
Features
• high reliability even with heavy use
• high suction power
• very long motor running time
• protection of the CAM unit
• cleanliness and quietness
• secure communication with your CAM unit
A plus for your milling devices – a plus for the health of your staff
Large amounts of milling dust particles put a lot of pressure on your CAM unit - so they need to be extracted quickly and efficiently. This not only protects the sensitive components of your CAM unit, but also helps to increase the health of your work environment.
The MAYA suction unit MP-S1 extracts dust effectively out of your milling device, collecting it reliably with a highly efficient filter system. This maintains the functionality and the value of your CAM unit as well as ensuring clean air in the laboratory.
Combine cleanliness and quietness
Creating a conducive work environment is possible when the noise level is low and the fine dust level in the air has been greatly reduced.
SILENT suction units are therefore, not only extremely powerful but also surprisingly quiet, through implementation of the results gained from psycho-acoustic research.
Select the perfect size
SILENT suction units are available as single, two or three workstation extraction units and also for use with a CAD-CAM system.
Easy start, intuitive operation
MAYA suction units can be very easily and quickly connected (Plug & Play), operated, cleaned and maintained. They provide the ideal filter technology for every requirement (with or without a bag depending on the version). The front of the unit allows convenient, direct access to all operating elements.
|
Item/Description |
Remark |
|
Permissible Mains Voltage |
220 - 240 Volts |
|
Permissible Mains Frequency |
50 - 60 Hz |
|
Suction Turbine Power |
1200 W |
|
Volume Flow (Max.) |
3300 l/min – 1.94 ft3/s |
|
Max. Depression Filter Quality |
200 hPa// 2.9 psi Class M According to EN 60335-2-69 |
|
Max. Permitted Connected Loud of the Plug-in Socket |
3400 W |
|
Number of Suction Hoses |
1 |
|
Sound Pressure Level (LpA) (at Max. Volume Flow) |
64 dB (A) |
|
Weight |
23 kg//50 lbs |
|
Weight with Packaging |
33.5 Kg// 73.8 lbs |
|
Dimensions (W*H*D) |
224*591*564 mm// 8.8*23.3*22" |
|
Suction Fittings Interior |
32 ml// 1.26" |
|
Suction Fittings Exterior |
40 ml//1.57" |
|
Fill Level Dust Collector |
7.5 l// 2 gal |
|
Optional Accessories |
1 Extra Motor (for S1 Series) 2 Pairs of Motor Coal 2 Meters of Suction Hose Pipe |
|
Working Temperature |
-10 up to +30 °C |
|
Store Temperature |
Max. 30 °C |
Advantages
